CHRI

CHRI ఇన్వర్టెడ్ ప్లానెటరీ రోలర్ స్క్రూలు

CHRI
టైప్ చేయండి

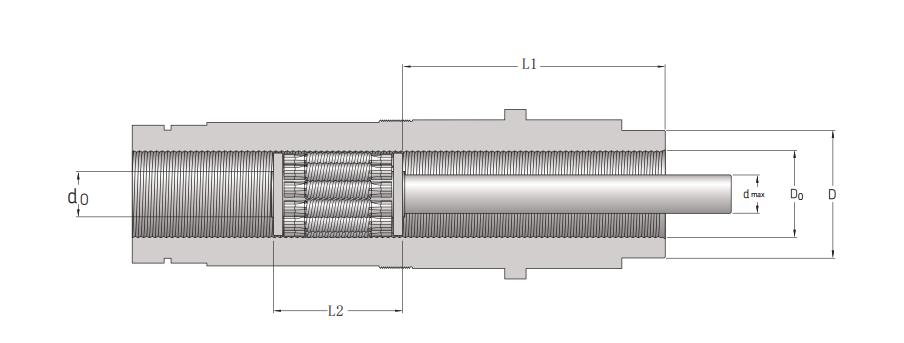

N P d0 C C0 η η' D0 D dmax L1 L2
–   mm mm kN kN –   mm mm mm mm mm
CHRI 18×2.4 3 2.4 18 25.6 59.9 0.69 0.55 30 38 16 65 50
CHRI 18×3 3 3 27.8 60.9 0.73 0.63 30 38 16 60 50
CHRI 18×4.5 3 4.5 26.6 51.2 0.77 0.7 30 38 16 55 50
CHRI 18×6 3 6 30.4 51.9 0.82 0.78 30 38 16 45 50
CHRI 21×2.4 3 2.4 21 45.5 92 0.66 0.48 35 45 18 84 56
CHRI 21×3 3 3 49.6 95 0.7 0.57 35 45 18 79 56
CHRI 21×4.5 3 4.5 53.3 94 0.75 0.67 35 45 18 74 56
CHRI 21×6 3 6 54.2 82.2 0.8 0.75 35 45 18 64 56
CHRI 24×2.4 3 2.4 24 53.7 108 0.63 0.41 40 50 21 210 65
CHRI 24×3 3 3 57.2 109 0.68 0.53 40 50 21 170 65
CHRI 24×4.5 3 4.5 62 109 0.73 0.63 40 50 21 110 65
CHRI 24×6 3 6 64.5 99 0.79 0.73 40 50 21 75 65
CHRI 30×2.4 3 2.4 30 83.2 185 0.58 0.28 50 60 27 210 75
CHRI 30×3 3 3 89.2 188 0.63 0.41 50 60 27 210 75
CHRI 30×4.5 3 4.5 95 184 0.69 0.55 50 60 27 210 75
CHRI 30×6 3 6 98 190 0.76 0.68 50 60 27 200 75
CHRI 39×2.4 3 2.4 39 125 301 0.52 0.08 65 75 36 195 90
CHRI 39×3 3 3 133 301 0.57 0.25 65 75 36 195 90
CHRI 39×4.5 3 4.5 143 302 0.64 0.44 65 75 36 195 90
CHRI 39×6 3 6 159 304 0.72 0.61 65 75 36 195 90
CHRI 48×2.4 3 2.4 48 209 564 0.47 0 80 90 44 171 114
CHRI 48×3 3 3 221 567 0.52 0.08 80 90 44 171 114
CHRI 48×4.5 3 4.5 234 557 0.59 0.31 80 90 44 171 114
CHRI 48×6 3 6 259 559 0.68 0.53 80 90 44 171 114
CHRI 60×3 3 3 60 452 1205 0.47 0.08 100 115 55 210 160
CHRI 60×4.5 3 4.5 476 1117 0.54 0.25 100 115 55 210 160
CHRI 60×6 3 6 487 1208 0.63 0.31 100 115 55 200 160
CHRI 60×9 3 9 495 1210 0.72 0.53 100 115 55 200 160
