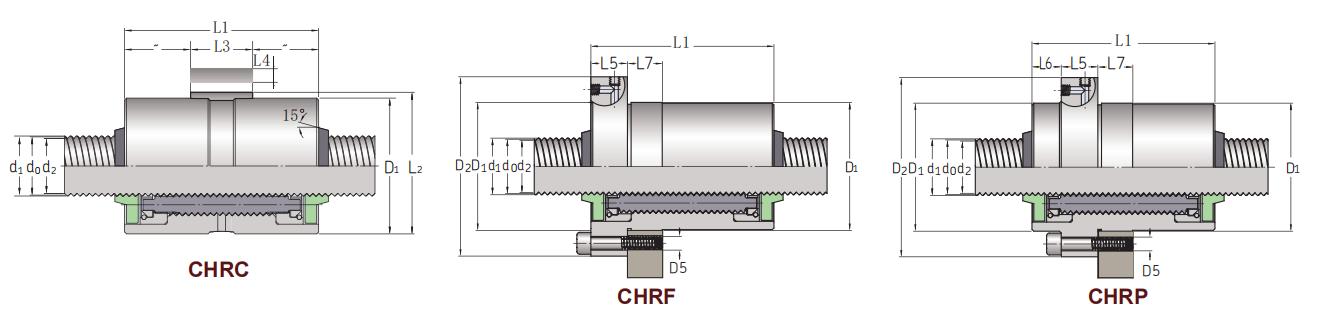

CHR ప్లానెటరీ సర్క్యులేటింగ్ రోలర్ కాలమ్ స్క్రూ

CHR
CHR1
CHR2
తో గింజ ఎదురుదెబ్బ వైపర్లు లేకుండా వైపర్లతో

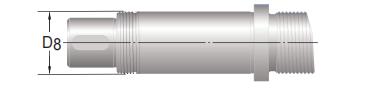

టైప్ చేయండి డి x పి N d0 d1 d2   C Co D1 D2 D5 D7 L1 L1 L2 L3 L4 L5 L6 L7 D8
      mm mm mm   kN kN mm mm mm mm mm mm mm mm mm mm mm mm mm
CHRC/F/P 8×2 4 8 8.17 7.76 0.87 8.6 15.4 25 46 4.8 36 34 44 26.3 12 3 16 - 12 12
CHRC/F/P 8×4 4 8 8.3 7.49 0.89 8.9 13.4 25 46 4.8 36 34 44 26.3 12 3 16 - 12 12
CHRC/F/P 12×3 5 12 12.22 11.74 0.87 13.2 21.1 30 51 4.8 41 34 44 27.3 12 3 16 - 12 15
CHRC/F/P 12×5 5 12 12.32 11.56 0.89 14.5 21.3 30 51 4.8 41 34 44 27.3 12 3 16 - 12 15
CHRC/F/P 12×8 5 12 12.42 11.13 0.9 15.3 20.7 30 51 4.8 41 34 44 27.3 12 3 16 - 12 15
CHRC/F/P 15×3 5 15 15.22 14.74 0.86 18.4 42.6 35 58 5.8 46 41 51 36.7 16 4 18 - 12 17
CHRC/F/P 15×5 5 15 15.32 14.56 0.89 20 42.1 35 58 5.8 46 41 51 36.7 16 4 18 - 12 17
CHRC/F/P 15×8 5 15 15.46 14.16 0.9 21.9 41.3 35 58 5.8 46 41 51 36.7 16 4 18 - 12 17
CHRC/F/P 18×3 5 18 18.2 17.74 0.85 28.4 65.6 40 63 5.8 51 48 58 42 18 5 18 - 12 20
CHRC/F/P 18×5 5 18 18.32 17.56 0.88 30 63.8 40 63 5.8 51 48 58 42 18 5 18 - 12 20
CHRC/F/P 18×8 5 18 18.46 17.16 0.89 31.9 61.2 40 63 5.8 51 48 58 42 18 5 18 - 12 20
CHRC/F/P 21×3 5 21 21.21 20.72 0.84 39.9 87.7 45 68 5.8 56 54 64 47 20 5 20 12 12 25
CHRC/F/P 21×5 5 21 21.33 20.52 0.87 41.9 88.8 45 68 5.8 56 54 64 47 20 5 20 12 12 25
CHRC/F/P 21×8 5 21 21.49 20.19 0.89 42.4 89.3 45 68 5.8 56 54 64 47 20 5 20 12 12 25
CHRC/F/P 21×10 5 21 21.58 19.96 0.89 43.7 87.2 45 68 5.8 56 54 64 47 20 5 20 12 12 25
CHRC/F/P 25×5 5 24 24.34 23.53 0.87 65.5 114.2 53 84 7 70 64 74 55.5 25 6 20 13 12 30
CHRC/F/P 25×8 5 24 24.51 23.21 0.89 76.1 114.8 53 84 7 70 64 74 55.5 25 6 20 13 12 30
CHRC/F/P 25×10 5 24 24.6 22.98 0.89 78.6 113.6 53 84 7 70 64 74 55.5 25 6 20 13 12 30
CHRC/F/P 25×15 5 24 24.6 22.98 0.89 80.6 113.6 53 84 7 70 64 74 55.5 25 6 20 13 12 30
CHRC/F/P 30×5 5 30 30.37 29.56 0.85 91.7 157.5 62 92 9 77 75 85 64.7 20 6 27 16 15 35
CHRC/F/P 30×10 5 30 30.63 29.01 0.89 108.5 167.6 62 92 9 77 75 85 64.7 20 6 27 16 15 35
CHRC/F/P CHRC/F/P 30×15 5 30 30.87 28.44 0.9 109.6 167.2 62 92 9 77 75 85 64.7 20 6 27 16 15 35
30×20 5 30 31.05 27.81 0.9 107.7 167.8 62 92 9 77 75 85 64.7 20 6 27 16 15 35
CHRC/F/P 36×5 5 36 36.37 35.56 0.84 106.9 220.4 74 110 9 92 85 95 76.7 28 6 30 16 15 40
CHRC/F/P 36×10 5 36 36.65 35.12 0.88 135.9 221.3 74 110 9 92 85 95 76.7 28 6 30 16 15 40
CHRC/F/P 36×15 5 36 36.8 34.48 0.89 136.7 221.5 74 110 9 92 85 95 76.7 28 6 30 16 15 40
CHRC/F/P 36×20 5 36 37.12 33.88 0.9 136.5 223.8 74 110 9 92 85 95 76.7 28 6 30 16 15 40
CHRC/F/P 39×5 5 39 39.35 38.54 0.84 129.2 245.2 80 116 11 98 90 100 82.7 28 6 30 18 18 45
CHRC/F/P 39×10 5 39 39.74 38.12 0.88 153.4 257.4 80 116 11 98 90 100 82.7 28 6 30 18 18 45
CHRC/F/P 39×15 5 39 39.92 37.49 0.89 168.8 251.1 80 116 11 98 90 100 82.7 28 6 30 18 18 45
CHRC/F/P 39×20 5 39 40.15 36.9 0.9 173.7 275.5 80 116 11 98 90 100 82.7 28 6 30 18 18 45
CHRC/F/P 39×25 5 39 40.5 36.8 0.9 175.3 261.7 80 116 11 98 90 100 82.7 28 6 30 18 18 45
CHRC/F/P 44×6 6 44 44.35 43.54 0.84 166 301.2 80 118 11 100 105 115 82.7 35 6 35 18 18 50
CHRC/F/P 44×12 6 44 44.65 43.03 0.88 175.3 310.5 80 118 11 100 105 115 82.7 35 6 35 18 18 50
CHRC/F/P 44×18 6 44 44.9 42.47 0.89 183.3 305.7 80 118 11 100 105 115 82.7 35 6 35 18 18 50
CHRC/F/P 44×24 6 44 45.12 41.88గా ఉంది 0.9 190.2 306.8 80 118 11 100 105 115 82.7 35 6 35 18 18 50
CHRC/F/P 44×30 6 44 45.28 41.23 0.9 175.3 302.4 80 118 11 100 105 115 82.7 35 6 35 18 18 50
CHRC/F/P 48×5 5 48 48.35 47.54 0.82 198 410.8 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×10 5 48 48.67 47.05 0.87 215.6 432.7 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×15 5 48 48.99 46.53 0.88 225.3 435.7 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×20 5 48 49.21 45.97 0.89 227.3 473.4 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×25 5 48 49.43 45.38 0.9 230.5 468.4 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×30 5 48 49.62 44.75 0.89 220.7 458.5 100 150 13.5 127 115 127 103 45 8 37 20 20 55
CHRC/F/P 48×6 6 48 48.35 47.54 0.84 190.1 401.7 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 48×12 6 48 48.66 47.04 0.88 207.6 427.9 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 48×15 6 48 48.79 46.76 0.88 214.2 430.1 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 48×18 6 48 48.92 46.49 0.89 215.4 428.3 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 48×20 6 48 49 46.3 0.89 216.9 485.7 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 48×24 6 48 49.15 45.91 0.9 230.4 435 86 122 11 104 115 127 88.7 45 6 37 20 20 55
CHRC/F/P 56×6 6 56 56.36 55.3 0.8 213.1 420.6 100 150 13.5 127 125 139 105 50 8 37 22 20 60
CHRC/F/P 56×9 6 56 56.6 55 0.83 257 449.2 100 150 13.5 127 125 139 105 50 8 37 22 20 60
CHRC/F/P 56×12 6 56 56.8 54.7 0.87 242 460.6 100 150 13.5 127 125 139 105 50 8 37 22 20 60
CHRC/F/P 56×15 6 56 57 54.4 0.87 258 505.8 100 150 13.5 127 125 139 105 50 8 37 22 20 60
CHRC/F/P 56×18 6 56 57.2 54.1 0.87 268 514.6 100 150 13.5 127 125 139 105 50 8 37 22 20 60
CHRC/F/P 56×24 6 56 57.5 53.8 0.88 296 514.6 100 150 13.5 127 125 139 105 50 8 37 22 20 60
